EB1216JA10-24.000M TR,Ecliptek超小型晶振,1612mm,智能手機晶振，美國Ecliptek晶振，日蝕晶振，型號：EB1216系列，編碼為：EB1216JA10-24.000M TR石英晶振，頻率：24.000MHz，頻率穩定性：±30ppm，頻率容差：±15ppm，負載電容：10pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：1.6x1.2mm封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，1612晶振，SMD晶振。具有超小型，輕薄型，高性能，高可靠性，耐熱及耐環境等特點。應用于：通訊設備晶振，可穿戴設備晶振，小型便捷式設備，智能手機晶振，平板電腦晶振，安防設備，數碼電子等應用。

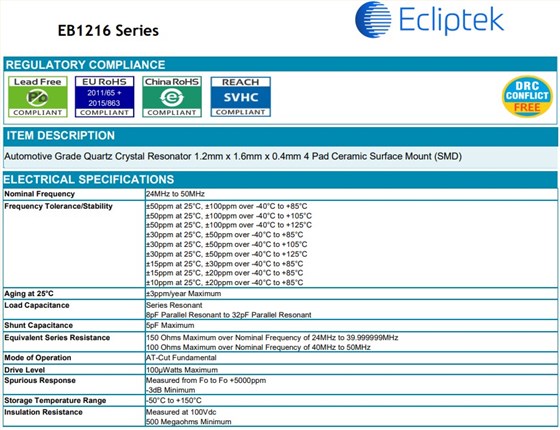

EB1216JA10-24.000M TR,Ecliptek超小型晶振,1612mm,智能手機晶振,參數表
| 品牌 | Ecliptek日蝕晶振 |
| 型號 | EB1216 |
| 物料編碼 | EB1216JA10-24.000M TR |
| 頻率 | 24.000MHz |
| 頻率穩定性 | ±30ppm |
| 頻率容差 | ±15ppm |
| 負載電容 | 10pF |
| 工作溫度 | -40°C ~ 85°C |
| 尺寸 | 1.6x1.2mm |

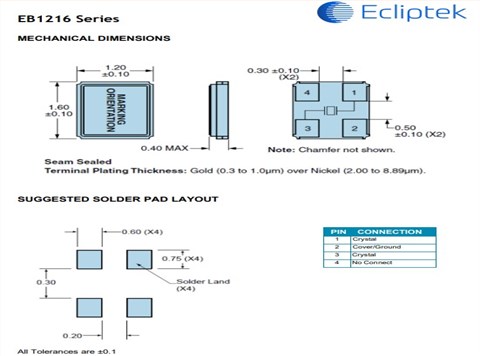

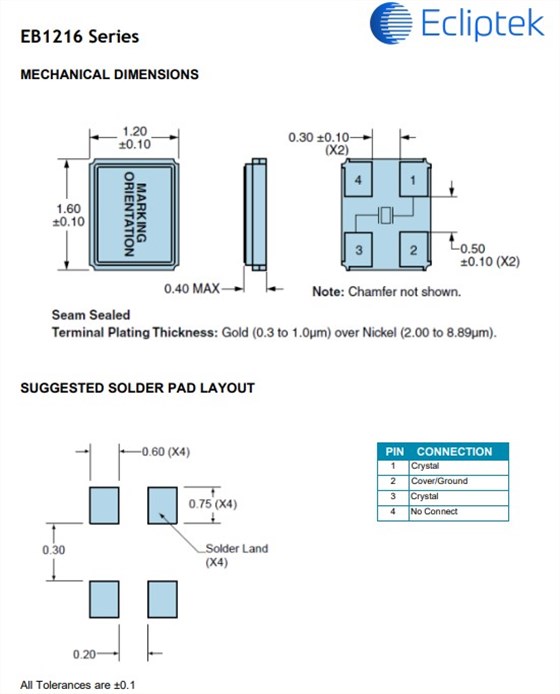

EB1216JA10-24.000M TR,Ecliptek超小型晶振,1612mm,智能手機晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 描述 | 系列 |
| EB1216JA10-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 10PF SMD | EB1216 |
| EB1216JA10-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 10PF SMD | EB1216 |
| EB1216YA10-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 10PF SMD | EB1216 |
| EB1216JA10-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 10PF SMD | EB1216 |
| EB1216JA10-24.576M TR | Ecliptek晶振 | CRYSTAL 24.5760MHZ 10PF SMD | EB1216 |
| EB1216JA10-27.120M TR | Ecliptek晶振 | CRYSTAL 27.1200MHZ 10PF SMD | EB1216 |
| EB1216YA10-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 10PF SMD | EB1216 |
| EB1216YA10-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 10PF SMD | EB1216 |
| EB1216YA10-27.000M TR | Ecliptek晶振 | CRYSTAL 27.0000MHZ 10PF SMD | EB1216 |
| EB1216JA10-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 10PF SMD | EB1216 |
| EB1216YA10-27.120M TR | Ecliptek晶振 | CRYSTAL 27.1200MHZ 10PF SMD | EB1216 |
| EB1216YA10-24.576M TR | Ecliptek晶振 | CRYSTAL 24.5760MHZ 10PF SMD | EB1216 |
| EB1216JA10-27.000M TR | Ecliptek晶振 | CRYSTAL 27.0000MHZ 10PF SMD | EB1216 |
| EB1216YA10-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 10PF SMD | EB1216 |
