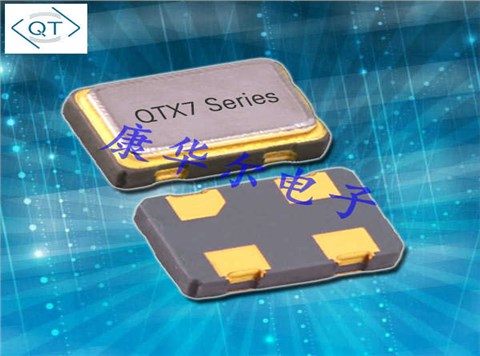

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器，德國進口晶振，Quarztechnik晶振，夸克晶振，型號：QTX7系列，編碼為：QTX733A16.0000B15M，頻率為：16 MHz，電壓3.3V，工作溫度范圍：-40℃至+85℃，頻率穩定性：±25ppm，負載電容：15pF，小體積晶振尺寸：7.0x5.0x1.4mm封裝，四腳貼片晶振，石英晶體振蕩器，有源晶振，7050晶振，HCMOS時鐘振蕩器，無鉛環保晶振。QX7振蕩器由一個TTL/HCMOS兼容的混合電路和一個微型石英晶體組成，它封裝在一個低輪廓的、工業標準的7x5毫米陶瓷封裝中。5070晶振應用于：通訊設備，無線網絡，藍牙模塊，物聯網，GPS定位，車載導航儀，醫療設備，安防設備，平板電腦，數碼電子等應用。

產品詳情

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器，產品特征：

•小型7.0x5.0x1.4mm封裝石英晶體振蕩器

•頻率范圍1MHz至155.520MHz

•標準的三態（啟用/禁用）功能

•電源電壓范圍：1.8V、2.5V、3.3V或5.0V

•提供高輸出負載版本（50pF）

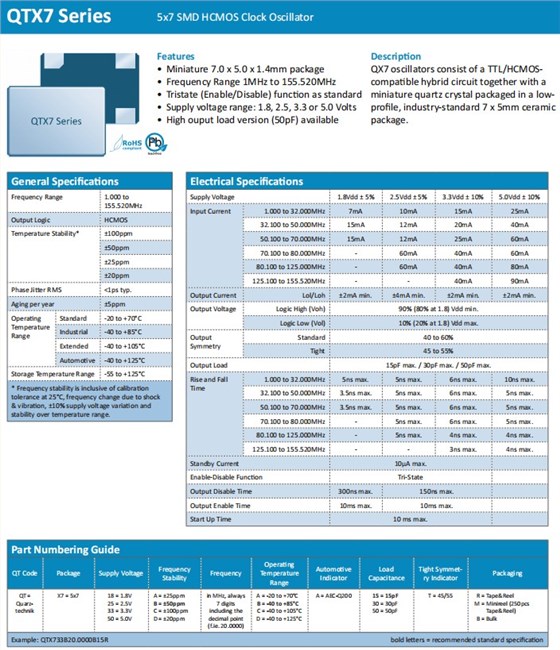

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器,參數表

Supply Voltage		1.8Vdd ± 5%	2.5Vdd ± 5%	3.3Vdd ± 10%	5.0Vdd ± 10%
Input Current	1.000 to 32.000MHz	7mA	10mA	15mA	25mA
	32.100 to 50.000MHz	15mA	12mA	20mA	40mA
	50.100 to 70.000MHz	15mA	12mA	25mA	60mA
	70.100 to 80.000MHz	-	60mA	40mA	60mA
	80.100 to 125.000MHz	-	60mA	40mA	80mA
	125.100 to 155.520MHz	-	-	40mA	90mA
Output Current	Lol/Loh	±2mA min.	±4mA min.	±2mA min.	±2mA min.
Output Voltage	Logic High (Voh)	90% (80% at 1.8) Vdd min.
Output Voltage	Logic Low (Vol)	10% (20% at 1.8) Vdd max.
Output	Standard	40 to 60%
Symmetry	Tight	45 to 55%
Output Load		15pF max. / 30pF max. / 50pF max.
Rise and Fall	1.000 to 32.000MHz	5ns max.	5ns max.	6ns max.	10ns max.
Time	32.100 to 50.000MHz	3.5ns max.	5ns max.	6ns max.	5ns max.
	50.100 to 70.000MHz	3.5ns max.	5ns max.	6ns max.	5ns max.
	70.100 to 80.000MHz	-	5ns max.	6ns max.	5ns max.
	80.100 to 125.000MHz	-	5ns max.	4ns max.	4ns max.
	125.100 to 155.520MHz	-	-	3ns max.	4ns max.
Standby Current		10μA max.
Enable-Disable Function		Tri-State
Output Disable Time		300ns max.	150ns max.
Output Enable Time		10ms max.	10ms max.
Start Up Time		10 ms max.

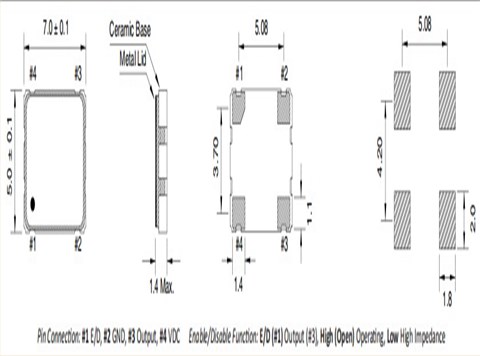

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik時鐘振蕩器,尺寸圖

產品編碼	頻率	輸出邏輯	電壓	工作溫度范圍	頻率穩定性
QTX733A3.68640B15M	3.6864 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A4.00000B15M	4.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A7.37280B15M	7.3728 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A8.00000B15M	8.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A10.0000B15M	10.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A11.0592B15M	11.0592 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A12.0000B15M	12.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A14.31818B15M	14.31818 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A14.7456B15M	14.7456 MHz	石英晶振	3.3V	-40 - +85℃	±25ppm
QTX733A16.0000B15M	16.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A16.3840B15M	16.384 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A20.0000B15M	20.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A24.5760B15M	24.576 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A25.0000B15M	25.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A27.0000B15M	27.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A30.0000B15M	30.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX733A32.0000B15M	32.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A3.68640B15M	3.6864 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A4.00000B15M	4.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A7.37280B15M	7.3728 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A8.00000B15M	8.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A10.0000B15M	10.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A11.0592B15M	11.0592 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
QTX533A12.0000B15M	12.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm
