NKG陶瓷晶振,S6GA27.0000F16E25-EXT,S6GA視頻晶振,27MHZ,6035mm特點:

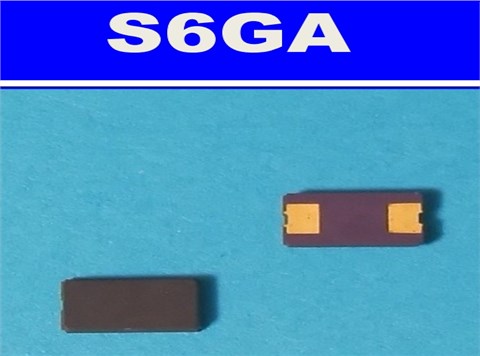

小包裝陶瓷晶振尺寸6.0 x 3.5 x 1.2毫米，帶2個襯墊。
普通接縫密封包裝的低成本替代品。

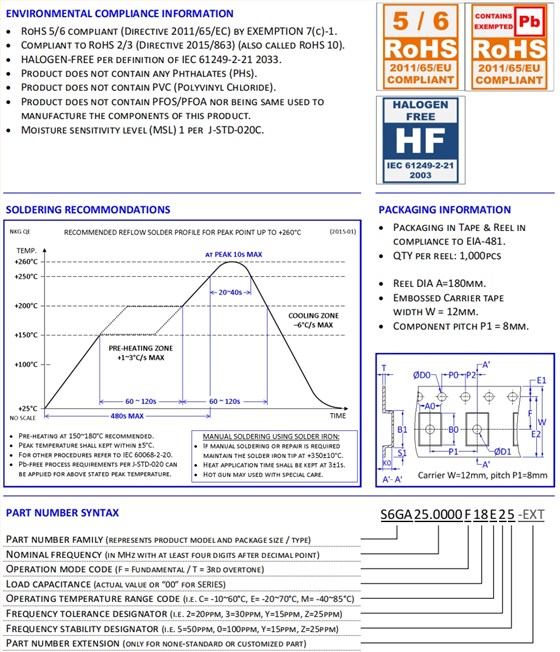

符合RoHS豁免規定。

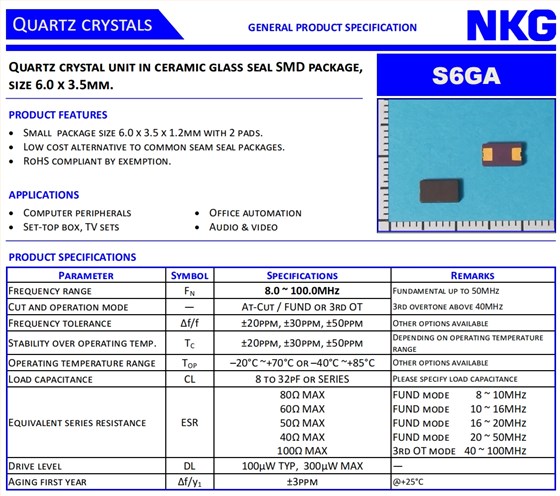

NKG陶瓷晶振,S6GA27.0000F16E25-EXT,S6GA視頻晶振,27MHZ,6035mm 參數表
| Parameter | Symbol | Specifications | Remarks | |||||||||
| Frequency range | FN | 27.0MHz |
Fundamental up to 50MHz 3rd overtone above 40MHz |
|||||||||
| Cut and operation mode | — | At-Cut / FUND or 3rd OT | ||||||||||
| Frequency tolerance | Δf/f | ±20ppm, ±30ppm, ±50ppm | Other options available | |||||||||
| Stability over operating temp. | TC | ±20ppm, ±30ppm, ±50ppm |
Depending on operating temperature range |
|||||||||
| Operating temperature range | TOP | – 20°C ~+70°C or –40°C ~+85°C | Other options available | |||||||||
| Load capacitance | CL | 8 to 32pF or SERIES | Please specify load capacitance | |||||||||
| Equivalent series resistance | ESR |
80Ω MAX 60Ω MAX 50Ω MAX 40Ω MAX 100? MAX |
FUND mode FUND mode FUND mode FUND mode 3rd OT mode |
8 ~ 10MHz 10 ~ 16MHz 16 ~ 20MHz 20 ~ 50MHz 40 ~ 100MHz |
||||||||
| Drive level | DL | 100µW TYP,300µW MAX | — | |||||||||
| Aging first year | Δf/y1 | ±3ppm | @+25°C | |||||||||

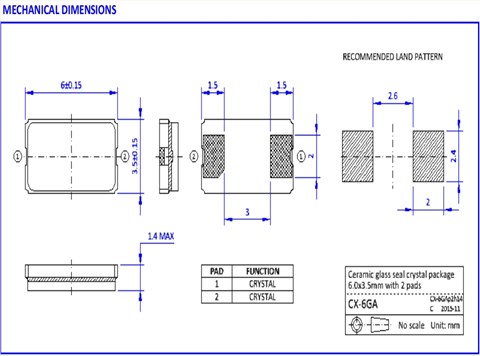

NKG陶瓷晶振,S6GA27.0000F16E25-EXT,S6GA視頻晶振,27MHZ,6035mm尺寸圖
