SX3KL系列,CMOS振蕩器,SX3KL-18K30E-32.768kHz,3225mm,FCD-Tech便攜式電子晶振,3225mm有源晶振,荷蘭進口晶振,四腳有源振蕩器,時鐘晶體振蕩器,32.768KHZ有源晶振,OSC貼片晶振,SMD振蕩器,尺寸3.2x2.5mm,頻率32.768KHZ,電壓1.8V,輸出CMOS,計量設備晶振,智能水電晶振,智能手表晶振,便攜式電子晶振 ,電子數碼晶振.
SX3KL系列,CMOS振蕩器,SX3KL-18K30E-32.768kHz,3225mm,FCD-Tech便攜式電子晶振特點:
超小型封裝OSC晶振
以音叉水晶為特色
超低µA電流消耗
應用：便攜式現場通訊，電、氣、水計量.

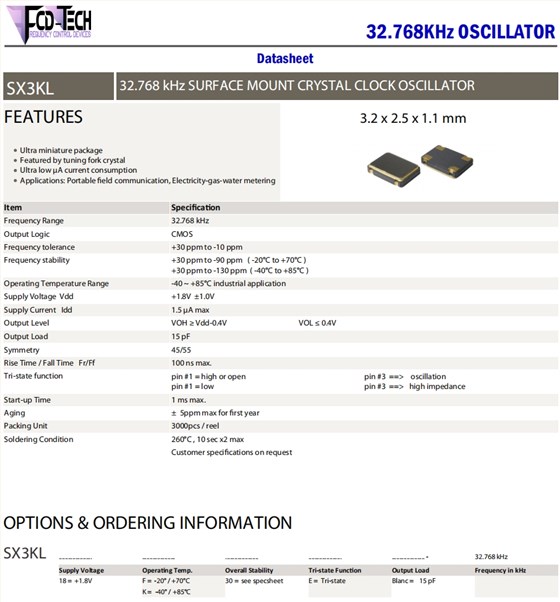

SX3KL系列,CMOS振蕩器,SX3KL-18K30E-32.768kHz,3225mm,FCD-Tech便攜式電子 參數表
| Item | Speci?cation | ||||||||
| Frequency Range | 32.768 kHz | ||||||||
| Output Logic | CMOS | ||||||||
| Frequency tolerance | +30 ppm to -10 ppm | ||||||||
| Frequency stability | +30 ppm to -90 ppm( -20°C to +70°C ) | ||||||||
| +30 ppm to -130 ppm ( -40°C to +85°C ) | |||||||||
| Operating Temperature Range-40 ~ +85°C industrial application | |||||||||
| Supply Voltage Vdd | +1.8V ±1.0V | ||||||||
| Supply CurrentIdd | 1.5 µA max | ||||||||
| Output Level | VOH ≥ Vdd-0.4VVOL ≤ 0.4V | ||||||||
| Output Load | 15 pF | ||||||||
| Symmetry | 45/55 | ||||||||
| Rise Time / Fall TimeFr/Ff | 100 ns max. | ||||||||
| Tri-state function | pin #1 = high or open | pin #3 ==>oscillation | |||||||
| pin #1 = low | pin #3 ==>high impedance | ||||||||
| Start-up Time | 1 ms max. | ||||||||
| Aging | ± 5ppm max for irst year | ||||||||
| Packing Unit | 3000pcs / reel | ||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||

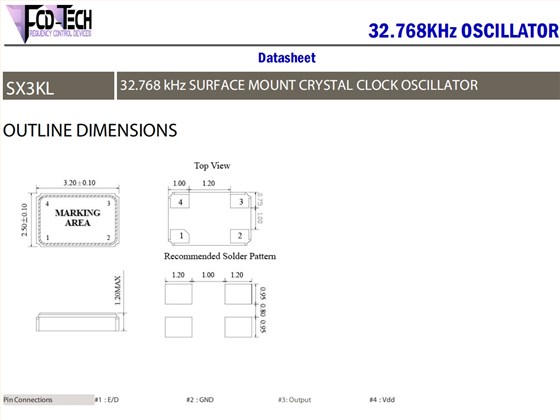

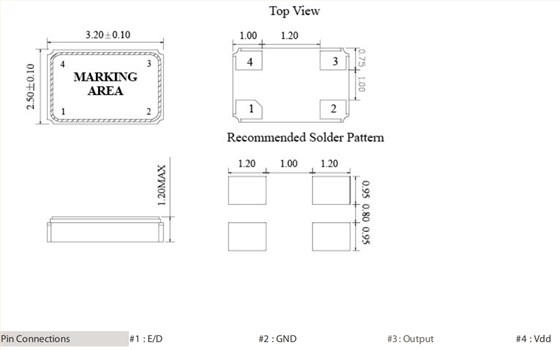

SX3KL系列,CMOS振蕩器,SX3KL-18K30E-32.768kHz,3225mm,FCD-Tech便攜式電子尺寸圖
